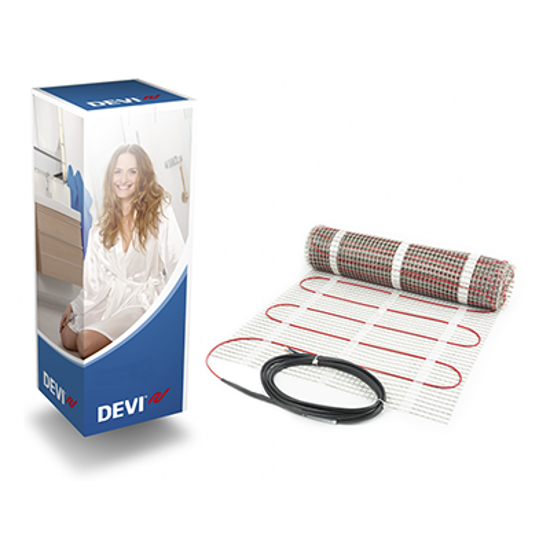

1050W/m² Heating Mat for Concrete Based Floors

Be the first to review this product

£261.48

Qty

Availability: 1 in stock

Product Code:

83030580

DESCRIPTION
SPECIFICATION

Extremely high-quality
360° screened twin conductor
Selfadhesive
All-in-one mat
Tough red PVC outer sheath
Round profile
Robust construction
Low height
Quick and easy to install
Clearly visible connection
Cables tested for high voltage
Cables tested for material
Tested for Ohmic resistance
Ensures quality

Product Info : 83030580
Voltage : 220 - 240V~
Output : 150 W/m2 @ 230V~
Max. permissible use temperature, unpowered : 90° C
Deformation strength : 600N
Insulation : Conductor insulation : FEP
Screen : 100% coverage; alu-foil; 0.5 mm2 tinned copper drain wire
Min installation temperature : -5° C
IP Rating : IPX7
Area : 7.0
Wattage : 1050W

Construction : Round, twin conductor with 360° screen, one cold lead
Max. permissible use temperature, powered : 85° C
Cable Size : Thickness:4 mm
Pulling strength : 120N
Outer sheath : PVC
Cold lead : 2.3 m DTWB, 2 x 1.0 mm2, earthed
Bending Radius : 50 mm
Resistance (Ohms) : 50.4
Dimensions : 0.5 x 14 m (W x L)
Price (inc VAT) : £261.48
