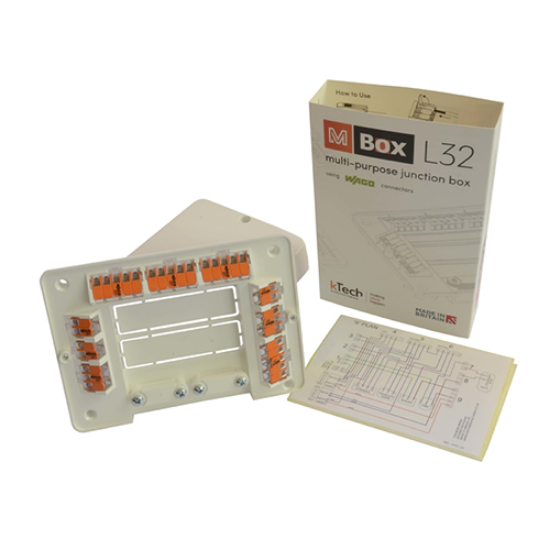

The mBox L32 wiring centre is complete with 221 series compact lever connectors

The 221 series allows up to 4mm², 32A and 450V

The 221 connectors are pre-mounted and ready to use

Significantly reduce installation time

Cable entries from behind or bottom cut outs

Attractive design

Satisfies the requirements of both 'S' and 'Y' connection schematics

Easy mounting with 4 integral mounting holes

Unique design on underside aids mounting on uneven surfaces

Applications: heating systems, data centres, alarm systems and lighting

Dimensions: (H) 114 x (W) 159 x (D) 35mm
