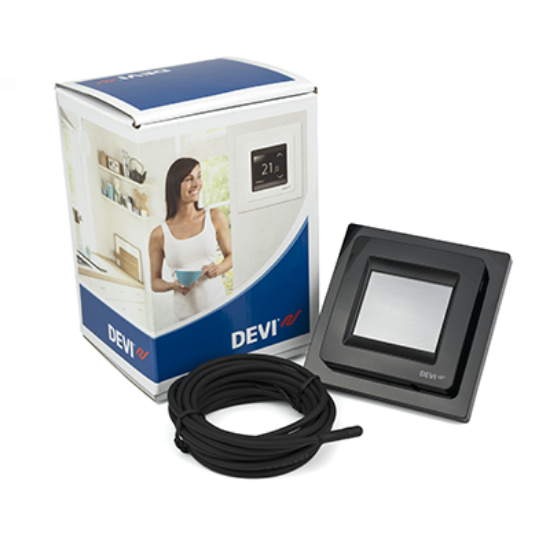

DEVIreg™ Touch Pure Black

Be the first to review this product

£93.23

Qty

Availability: 3 in stock

Product Code:

140F1069

DESCRIPTION
SPECIFICATION

5 year Warranty
Certified by CE, EAC
Certified by Intertek Semko
Certified by UkrTEST

Product Info : 140F1069
Weight : Gross weight=0.24kg Net weight=0.24 kg
Ambient temperature [°C] [Max] : 30 °C
Ball pressure test temperature [°C] : 75 °C
Certification company : CE EAC Intertek Semko UkrTEST
Compatible foreign sensor type : Yes
Depth : 24mm
Display (Yes/No) : Yes
IP Rating : 21
Height : 85mm
Package depth [mm] : 140mm
Package width [mm] : 95mm
Regulation type : PWM
Resistive load max [A] : 16
Sensor type : Room + Floor
Standby power consumption [W] [Max] : 0.4 W
Storage temperature [°C] [Min] : 20 °C
Supply voltage [V] AC [Max] : 240 V
Temperature - floor [°C] [Max] : 45 °C
Temperature - room [°C] [Max] : 35 °C
Temperature limiter [°C] [Max] : 45 °C
Temperature max. limiter [°C] [Max] : 35 °C
Terminal cable size max [mm²] : 2 x 2.5

EAN : 5703466215135
Ambient temperature [°C] [Min] : 0 °C
Battery Backup : Yes
Colour : Black RAL 9005
Compatible frame system : Yes
DIN mounting : No
Display type : Touch screen
Frost protection [°C] : 5 °C
Inductive load : cos φ= 0.3 max 1A
Package height [mm] : 85mm
Pollution degree : 2
Relay switch : 1-pole
Sensor definition point [Ohm/°C] : 15kΩ / 25°C
Software class : A
Storage temperature [°C] [Max : 65 °C
Supply voltage [V] AC : 230 V
Supply voltage [V] AC [Min] : 220 V
Temperature - floor [°C] [Min] : 5 °C
Temperature - room [°C] [Min] : 5 °C
Temperature limiter [°C] [Min] : 5 °C
Temperature max. limiter [°C] [Min] : 20 °C
Width : 85mm
Price (inc VAT) : £93.23
