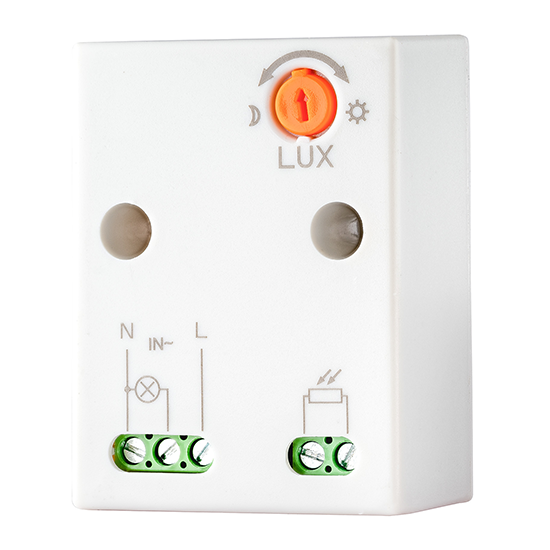

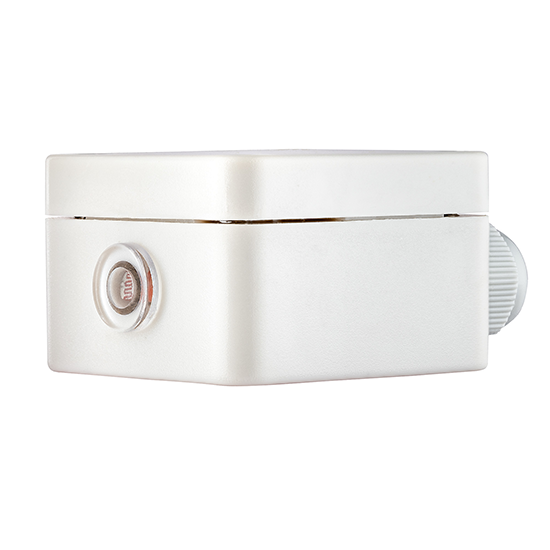

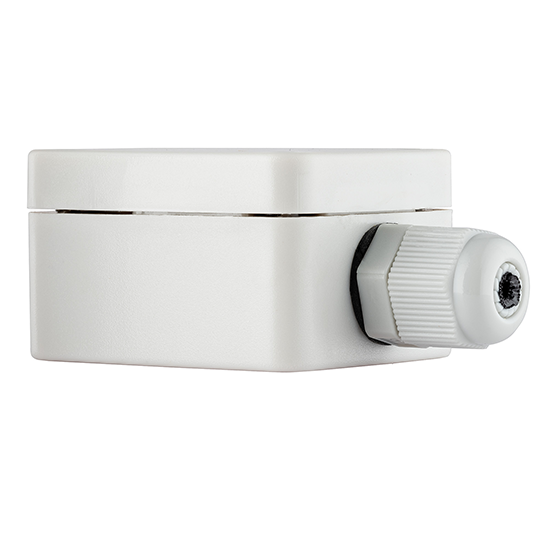

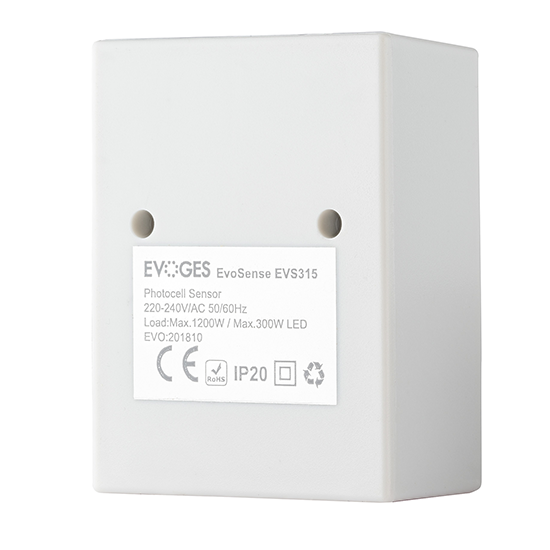

The EvoSense Photocell Sensor is a reliable and energy-efficient solution for automatic lighting control. Designed to switch lights on at dusk and off at dawn, this sensor detects ambient light levels and activates lighting accordingly, helping reduce energy consumption and improve convenience in residential or commercial settings.

Operating on 220–240V AC / 50–60Hz, the EvoSense sensor supports a maximum load of 1200W for incandescent or 300W for LED lighting. With an adjustable lux range of <2–100 lux, you can fine-tune light sensitivity to meet your environment's specific needs.

The IP20-rated housing is ideal for indoor applications where moisture exposure is minimal. Its compact design and high 15A rated current capacity make it a powerful addition to any lighting automation setup.

Key Features:

Operating Voltage: 220–240V AC, 50/60Hz

Rated Current: 15A

Load Capacity: Max. 1200W (incandescent), Max. 300W (LED)

Ambient Light Detection: Adjustable <2–100 lux

IP Rating: IP20 – Suitable for indoor use

Function: Automatically switches lights on/off based on ambient light

Application: Ideal for corridor lights, garden lights, signs, or shop lighting automation

Ensure lighting is only used when needed with the EvoSense dusk-to-dawn photocell sensor—a smart choice for cost-saving, security, and sustainability.
