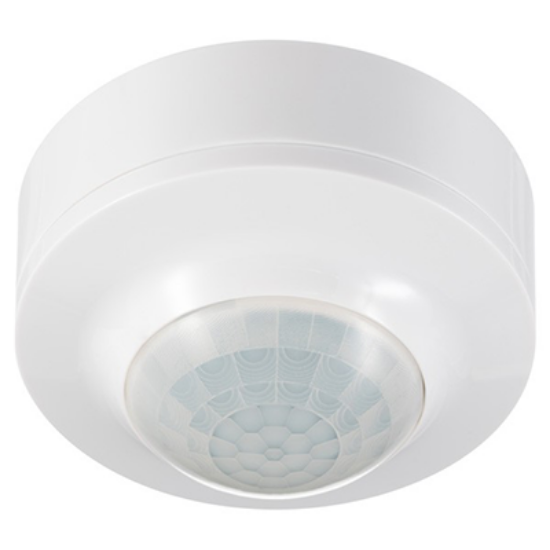

Timeguard SureTime 360° Surface Mount PIR Sensor

Be the first to review this product

£21.26

Qty

Availability: 30 in stock

Product Code:

SLW360N

DESCRIPTION
SPECIFICATION

Surface Mounted PIR Sensor
360° detection angle
6m detection range
Adjustable light level
1000W of halogen lighting
200W fluorescent/LED
Large mains terminals
Manual override
Convenient controls concealed
A removable shroud

Product Info : SLW360N
Operating Voltage : 230V AC
Installation : Surface
Number of Channels : 1
Temperature Range : -20°C to + 40°C
Weight : 72g
Angle of Detection : 360°
Slave Terminal : Yes (Maximum of 5 STFM360 PIR sensors can be wired in parallel. Total load must not exceed the lamp rating of a single STFM360 unit.)
Permanent ON Facility : Yes, Pulse (6 hours max)

Frequency (Hz) : 50/60 Hz
Class Protection : Class II
IP Rating : IP40 (Rated suitable for restricted internal applications)
Dimensions : Height 88mm, Width 88mm, Depth 50mm
EAN : 5012483014325
Light ON Time After Last Detection (Adjustable) : 3 seconds to 18 minutes, User adjustable
Detection Range (Max) Metres : 6-8 meters, Fixed (Achieved at a 2.5m mounting height)
Price (inc VAT) : £21.26
